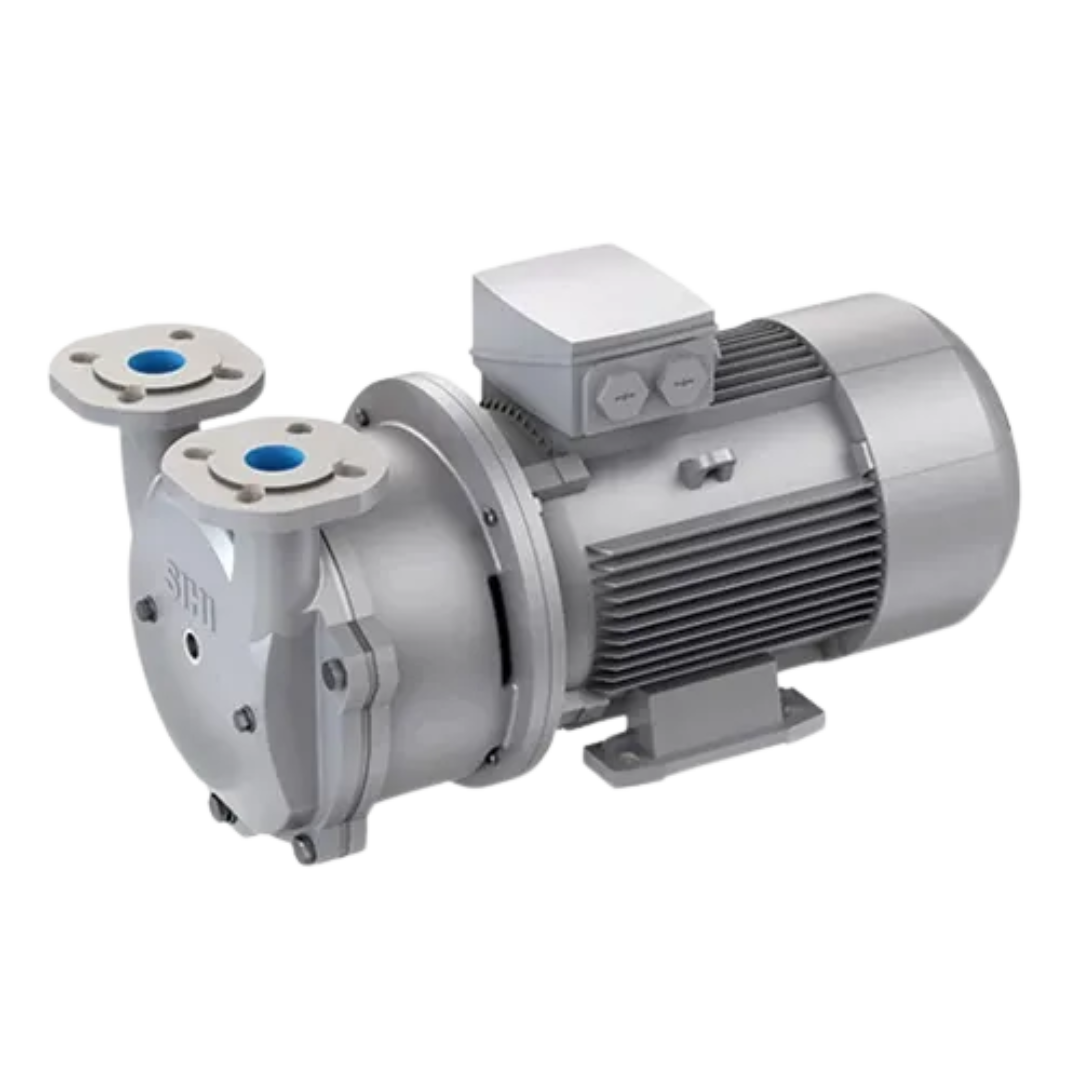

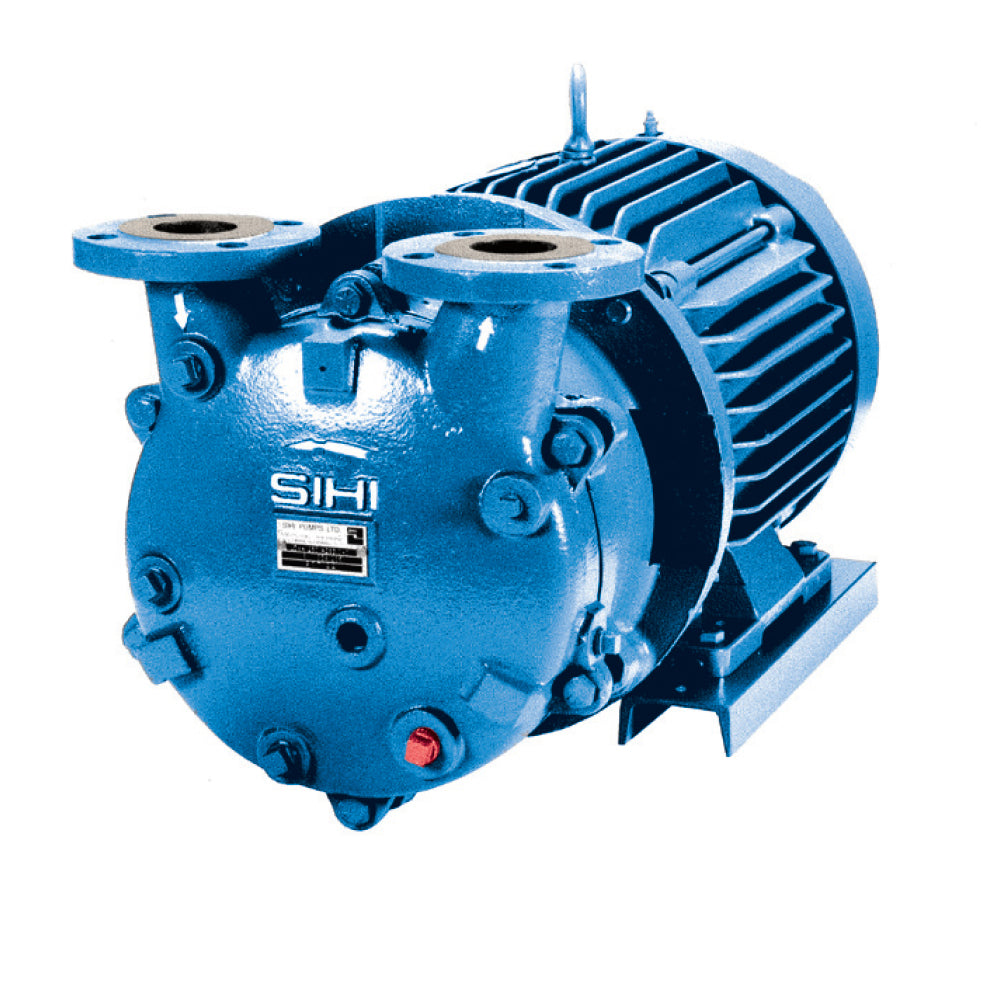

SIHI - LEM Series Liquid Ring Vacuum Pumps
Liquid ring vacuum pumps of the series LEM (LEMD and LEME) are single-stage displacement pumps of uncomplicated and robust construction.
- Vacuum: 24.7 - 760 Torr
- Flow: 276 CFM
-
This product price is available on request only
Product details
Dolphin – robust and compact. Ideal for difficult applications.
-
Features & Benefits - Non-polluting due to nearly isothermal compression
- Oil-free, as no lubrication in the working chamber
- Handling of nearly all gases and vapours
- Entrained liquid can be handled
- Easy maintenance and reliable operation
- Low noise and nearly free from vibration
- Wide choice of material, therefore applicable nearly everywhere
- Protection against cavitation as standard
- Incorporated dirt drain
- Incorporated central drain
- No metallic contact of the rotating parts
Standards - ANSI B16.5
- NEMA MG 1-2016
Operating Parameters - Flows to 262 m³/h (154 cfm)
- Suction pressures to 33 mbara (25 Torr)
- Temperatures to 100°C (212°F)
- Service liquid max. admissible temperature 82°C (180°F)
-
Flow (CFM) 276 Pressure (Torr) 24.7 – 760
- Description
Features & Benefits - Non-polluting due to nearly isothermal compression
- Oil-free, as no lubrication in the working chamber
- Handling of nearly all gases and vapours
- Entrained liquid can be handled
- Easy maintenance and reliable operation
- Low noise and nearly free from vibration
- Wide choice of material, therefore applicable nearly everywhere
- Protection against cavitation as standard
- Incorporated dirt drain
- Incorporated central drain
- No metallic contact of the rotating parts
Standards - ANSI B16.5
- NEMA MG 1-2016
Operating Parameters - Flows to 262 m³/h (154 cfm)
- Suction pressures to 33 mbara (25 Torr)
- Temperatures to 100°C (212°F)
- Service liquid max. admissible temperature 82°C (180°F)
- Specifications
Flow (CFM) 276 Pressure (Torr) 24.7 – 760 - Brochures
