SANDPIPER - BEAST AODD Pump

Product details

• Description
• Specifications
• Performance Specs
• Brochures
• Videos

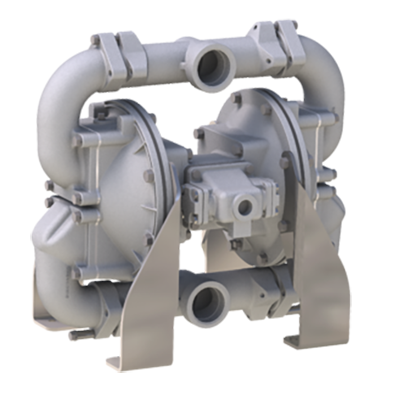

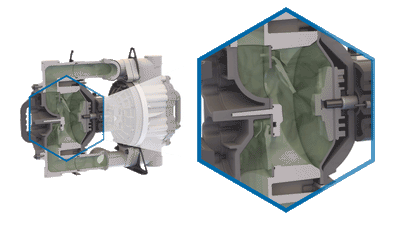

• SANDPIPER's Beast Series Pump is a 2" AODD pump that features a clog resistant design and a heavy duty flap valve and are offered in metallic and non-metallic construction. The pump resists clogging by preventing the collection of small solids and packable dust, even under the most severe conditions. The patent-pending 316ss Flap and Seat are the most innovative features for AODD pumps.

• SPB20 Metallic

  Port Size	2" NPT
  Capacity	0 to 208 gpm (787 lpm)
  Air Distribution Valve	No-lube, no-stall design
  Solids-Handling	Up to 2" (50 mm)
  Heads Up To	125 psi or 289 ft of water (8.6 bar or 88 meters)
  Displacement/Stroke	0.47 gallons (1.8 liters)
  Max Operating Pressure	125 psi (8.6 bar)
  Shipping Weight Aluminum Cast Iron Stainless Steel	86 lbs (39 kg) 168 lbs (76 kg) 168 lbs (76 kg)

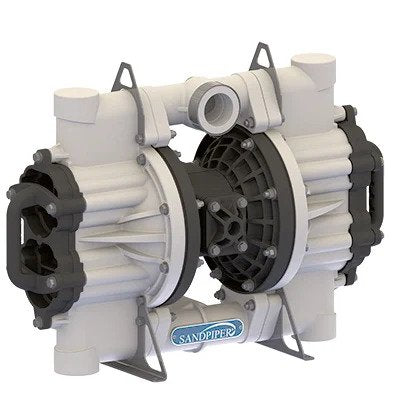

  SPB20 Non-Metallic

  Port Size	2" NM NPT (Internal) 2" BSP (Tapered) 2" ANSI 2" DIN Flange
  Capacity	0 to 170 gpm (644 lpm)
  Air Distribution Valve	No-lube, no-stall design
  Solids-Handling	Up to 1.8" (46 mm)
  Heads Up To	100 psi or 231 ft. of water (7 bar or 70 meters)
  Displacement/Stroke	.50 gallons (1.9 liters)
  Max Operating Pressure	100 psi (7 bar)
  Shipping Weight	Pump: 53 lbs (24 kg) Shipping: 70 lbs (31.7 kg)

• SPB20 Metallic Pump Data Sheet

  SP20 Non-Metallic Pump Data Sheet

• SANDPIPER Beast Pump Brochure
