SANDPIPER - Containment Duty Ball Valve AODD Pumps

Product details

• Description
• Specifications
• Performance Specs
• Brochures
• Videos
• Certifications

• All containment duty pumps are exclusively designed with containment chambers, hydraulically balanced/coupled pumping diaphragm and driver diaphragm assemblies. All containment chambers are designed to accommodate visual, mechanical and low voltage leak detection devices. CD pumps are constructed of Aluminum, Cast Iron, Stainless Steel, Alloy C, Polypropylene and PVDF with TPE(thermal plastic elastomers), PTFE options in diaphragms and check valves.



  Features & Benefits:

  • Prevent Leaks to Environment of Caustic or Dangerous Fluids
  • Variety of Sensors Available to Notify When Diaphragms are Damaged
  • ESADS+Plus Air Valve: Externally Serviceable Air Distribution System
  • Dynamic Manifold Connections: 90° – 180° Rotation Options

•

  Series	Port Size	Capacity	Air Distribution Value	Solids-Handling	Heads Up To	Displacement / Storke	Max Operating Pressure	Shipping Weight

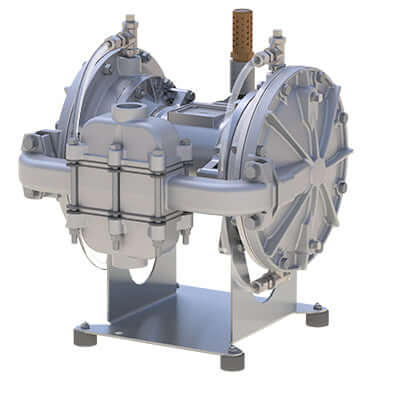

  ST1      ST25	1" NPT (Internal)           1" BSP (Tapered)	0 to 42 gpm (159 lpm)	No-lube, no-stall design	Up to ¼" (6.3 mm)	125 psi or 289 ft. of water (8.6 bar or 88 meters)	.09 gallons (.34 liters)	125 psi (8.6 bar)	Aluminum- 46 lbs (20 kg)                         Stainless Steel- 67 lbs (30 kg)

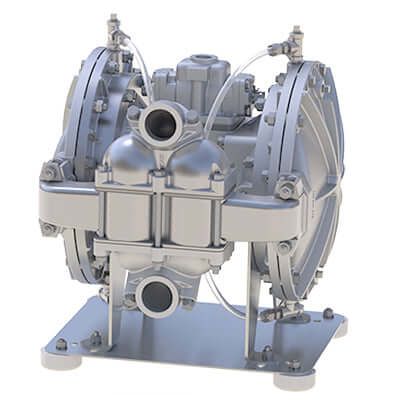

  ST 1 1/2 ST40	1½" NPT                           1½" BSP (Tapered)	0 to 106 gpm (400 lpm)	No-lube, no-stall design	Up to ¼" (6.3 mm)	125 psi or 289 ft. of water (8.6 bar or 88 meters)	.37 gallons (1.29 liters)	125 psi (8.6 bar)	Aliminum - 99 lbs (46 kg)                  Cast Iron - 146 lbs (66 kg)                    Stainless Steel - 212 lbs (95 kg)

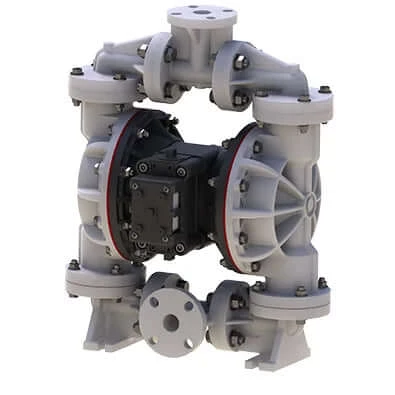

  S1F	1" ANSI Flange or     PN10 25mm DIN Flange	0 to 53 gpm (200 lpm)	No-lube, no-stall design	Up to ¼" (6 mm)	100 psi or 231 ft. of water (7 bar or 70 meters)	.19 gallons (.72 liters)	100 psi (7 bar)	Polypropylene - 42 lbs (19 kg)                 PVDF - 54 lbs (24 kg)

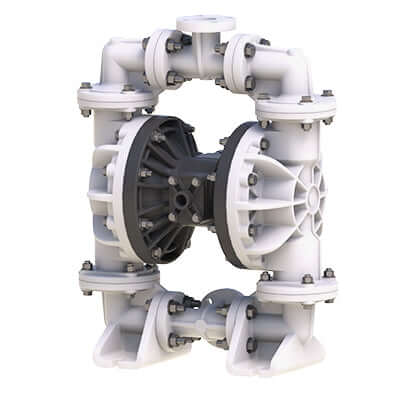

  S15	1 1/2" ANSI Flange          PN10 25mm DIN Flange	0 to 100 gpm (378 lpm)	No-lube, no-stall design	Up to ¼" (6 mm)	100 psi or 231 ft. of water (7 bar or 70 meters)	.43 gallons (1.63 liters)	100 psi (7 bar)	Polypropylene - 82 lbs (37 kg)               PVDF - 112 lbs (51 kg)                      Conductive Polypropylene - 85 llbs (38  kg)                                                         Polypropylene Spill - 149 lbs (68 kg)    PVDF Spill Containment - 194 lbs (88 kg)
  S20	2" Universal Flange (Fits ANSI & DIN Flange)	0 to 160 gpm (605 lpm)	No-lube, no-stall design	Up to .66" (17 mm)	100 psi or 231 ft. of water (7 bar or 70 meters)	.46 gallons (1.73 liters)	100 psi (7 bar)	Polypropylene - 95 lbs (43 kg)                 PVDF - 130 lbs (59 kg)                            Conductive Polypropylene - 100 lbs (45 kg)

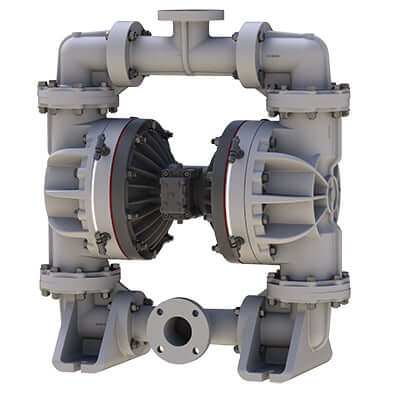

  S30	3" ANSI Flange or 80mm DIN Flange	0 to 280 gpm (1060 lpm)	No-lube, no-stall design	Up to .71" (18 mm)	100 psi or 231 ft. of water (7 bar or 70 meters)	.9 gallons (3.41 liters)	100 psi (7 bar)	Polypropylene - 231 lbs (105 kg)      PVDF: 315 lbs (143 kg)
