SANDPIPER - G-Series Natural Gas AODD Operated Pumps
SANDPIPER G-Series pumps use market-specific technology for industry-leading pumping performance. These pumps are designed with both efficiency and reliability in mind.

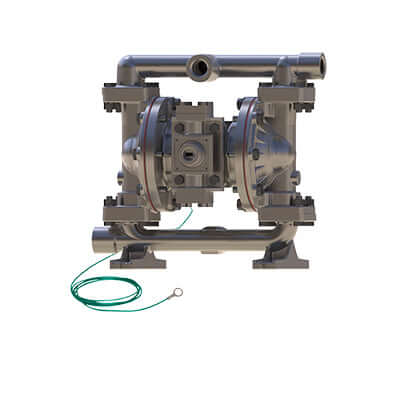

- 1/2" G-Series Metallic Ball Valve Pumps (G05)

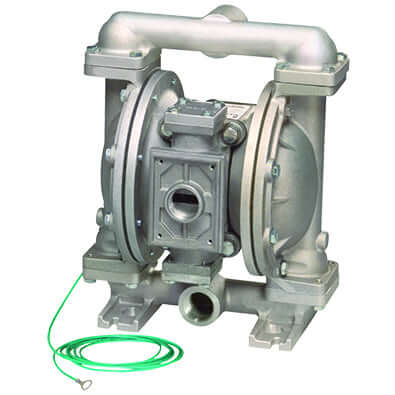

- 1" G-Series Metallic Ball Valve Pumps (G1F)

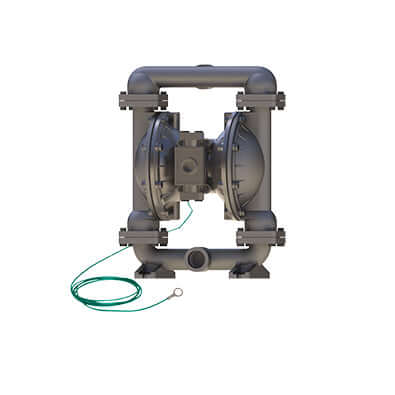

- 1-1/2" G-Series Metallic Ball Valve Pumps (G15)

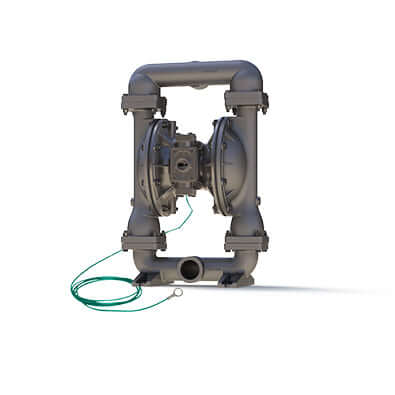

- 2" G-Series Metallic Ball Valve Pumps (G20)

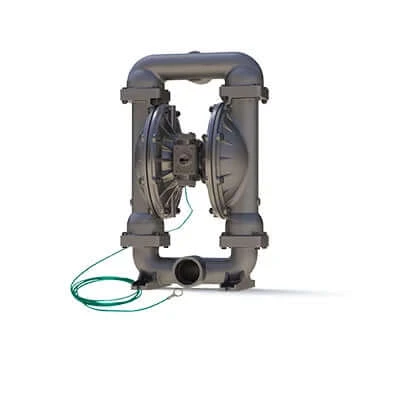

- 3" G-Series Metallic Ball Valve Pumps (G30)

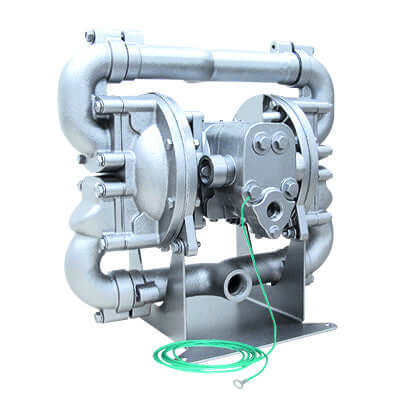

- 1" G-Series Metallic Flap Valve Pumps (G10F)

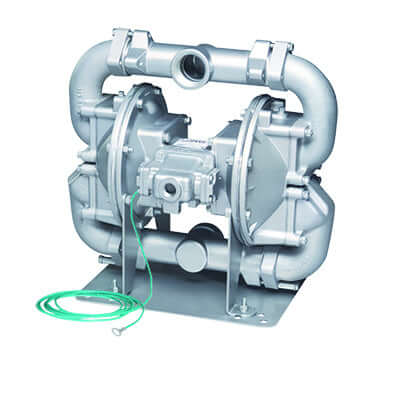

- 2" G-Series Metallic Flap Valve Pumps (G20F)

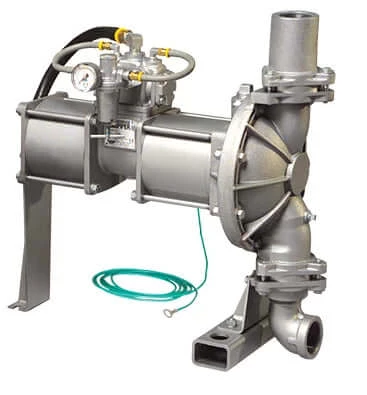

- 2" G-Series Metallic High Pressure Pumps (GH2)
Available in stainless steel for corrosion resistance and hygienic applications.
-
This product price is available on request only
Product details
-
SANDPIPER G-Series pumps provide a safe and reliable pumping solution for upstream and midstream applications. Utilizing robust aluminum or stainless castings, SANDPIPER G-Series pumps handle both sweet and sour gas while allowing for complete groundability.
SANDPIPER’s G-Series pumps carry the following certifications:
- ATEX – ATEX-compliant pumps are suitable for use in explosive atmospheres when the equipment is properly grounded in accordance with local electrical codes.
- Blue Star ANSI LC6 – hydrostatic pressure tested to 400 psi
- Blue Flame Technical Letter No. R14 – hydrostatic pressure tested to 500 psi
- NACE MR0175/ISO15156 –sweet and sour gas corrosion resistance
- ABS Type Approved Product – ensures SANDPIPER pumps conform to marine industry manufacturing standards
-
Series Port Size Capacity Air Distribution Value Solids-Handling Heads Up To Displacement / Storke Max Operating Pressure Shipping Weight G05 ½" NPT / BSP / ANSI 0 to 15 gpm (56 lpm) No-lube, no-stall design Up to .125" (6.3 mm) 100 psi or 231 ft. of water (7 bar or 70 meters) 125 psi (8.6 bar) Aluminum - 15 lbs (7 kg) Stainless Steel - 21 lbs (10 kg) G1F 1" NPT / BSP 0 to 45 gpm (170 lpm) No-lube, no-stall design Up to ¼" (6 mm) 100 psi or 231 ft. of water (7 bar or 70 meters) .11 gallons (.42 liters) 100 psi (7 bar) Aluminum - 28 lbs (13 kg) Stainless Steel - 43 lbs (20 kg) G15 1 1/2" NPT / BSP 0 to 106 gpm (401 lpm) No-lube, no-stall design Up to ¼" (6 mm) 100 psi or 231 ft. of water (7 bar or 70 meters) 41 gallons (1.55 liters) 100 psi (7 bar) Aluminum - 56 lbs (13 kg) Stainless Steel - 95 lbs (20 kg) G20 2" NPT / BSP 0 to 150 gpm (567 lpm) No-lube, no-stall design Up to ¼" (6 mm) 100 psi or 231 ft. of water (7 bar or 70 meters) .42 gallons (1.59 liters) 100 psi (7 bar) Aluminum - 69 lbs (31 kg) Stainless Steel - 114 lbs (52 kg) G30 125 psi (8.6 bar) Aluminum - 116 lbs (53 kg) Cast Iron - 215 lbs (98 kg) Stainless Steel - 215 lbs (98 kg) G1F 1" NPT / BSP 0 to 45 gpm (170 lpm) No-lube, no-stall design Up to ¼" (6 mm) 100 psi or 231 ft. of water (7 bar or 70 meters) .11 gallons (.42 liters) 100 psi (7 bar Aluminum - 28 lbs (13 kg) Stainless Steel - 43 lbs (20 kg) G20F 2” NPT 0 to 208 gpm (786 lpm) No-lube, no-stall design Up to 2" (50mm) 100 psi or 231 ft. of water (7 bar or 70 meters) .47 gallons (1.8 liters) 100 psi (7 bar) Aluminum - 69 lbs (31 kg) Stainless Steel - 114 lbs (52 kg) GH2M 250 psi (8.6 bar) Cast Iron - 172 lbs (78 kg) Stainless Steel - 176 (80 kg) -
-
- Description
SANDPIPER G-Series pumps provide a safe and reliable pumping solution for upstream and midstream applications. Utilizing robust aluminum or stainless castings, SANDPIPER G-Series pumps handle both sweet and sour gas while allowing for complete groundability.
SANDPIPER’s G-Series pumps carry the following certifications:
- ATEX – ATEX-compliant pumps are suitable for use in explosive atmospheres when the equipment is properly grounded in accordance with local electrical codes.
- Blue Star ANSI LC6 – hydrostatic pressure tested to 400 psi
- Blue Flame Technical Letter No. R14 – hydrostatic pressure tested to 500 psi
- NACE MR0175/ISO15156 –sweet and sour gas corrosion resistance
- ABS Type Approved Product – ensures SANDPIPER pumps conform to marine industry manufacturing standards
- Specifications
Series Port Size Capacity Air Distribution Value Solids-Handling Heads Up To Displacement / Storke Max Operating Pressure Shipping Weight G05 ½" NPT / BSP / ANSI 0 to 15 gpm (56 lpm) No-lube, no-stall design Up to .125" (6.3 mm) 100 psi or 231 ft. of water (7 bar or 70 meters) 125 psi (8.6 bar) Aluminum - 15 lbs (7 kg) Stainless Steel - 21 lbs (10 kg) G1F 1" NPT / BSP 0 to 45 gpm (170 lpm) No-lube, no-stall design Up to ¼" (6 mm) 100 psi or 231 ft. of water (7 bar or 70 meters) .11 gallons (.42 liters) 100 psi (7 bar) Aluminum - 28 lbs (13 kg) Stainless Steel - 43 lbs (20 kg) G15 1 1/2" NPT / BSP 0 to 106 gpm (401 lpm) No-lube, no-stall design Up to ¼" (6 mm) 100 psi or 231 ft. of water (7 bar or 70 meters) 41 gallons (1.55 liters) 100 psi (7 bar) Aluminum - 56 lbs (13 kg) Stainless Steel - 95 lbs (20 kg) G20 2" NPT / BSP 0 to 150 gpm (567 lpm) No-lube, no-stall design Up to ¼" (6 mm) 100 psi or 231 ft. of water (7 bar or 70 meters) .42 gallons (1.59 liters) 100 psi (7 bar) Aluminum - 69 lbs (31 kg) Stainless Steel - 114 lbs (52 kg) G30 125 psi (8.6 bar) Aluminum - 116 lbs (53 kg) Cast Iron - 215 lbs (98 kg) Stainless Steel - 215 lbs (98 kg) G1F 1" NPT / BSP 0 to 45 gpm (170 lpm) No-lube, no-stall design Up to ¼" (6 mm) 100 psi or 231 ft. of water (7 bar or 70 meters) .11 gallons (.42 liters) 100 psi (7 bar Aluminum - 28 lbs (13 kg) Stainless Steel - 43 lbs (20 kg) G20F 2” NPT 0 to 208 gpm (786 lpm) No-lube, no-stall design Up to 2" (50mm) 100 psi or 231 ft. of water (7 bar or 70 meters) .47 gallons (1.8 liters) 100 psi (7 bar) Aluminum - 69 lbs (31 kg) Stainless Steel - 114 lbs (52 kg) GH2M 250 psi (8.6 bar) Cast Iron - 172 lbs (78 kg) Stainless Steel - 176 (80 kg) - Inside the Compressor
- Performance Specs
- Brochures
- Certifications
