Solberg

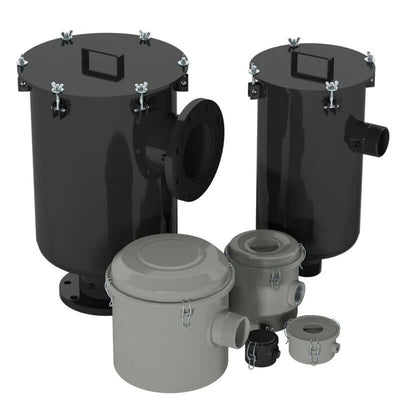

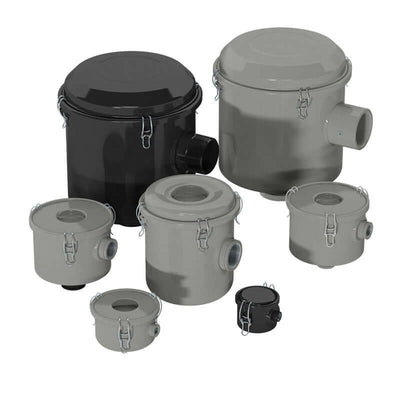

CSL Series

Inline Right Angle Vacuum Filters

Solberg’s CSL Series Vacuum Filters are designed for a variety of vacuum processes where harmful particulates are present. Ideal for protecting the inlet of most vacuum pumps, the CSL Series comes standard with a variety of replaceable filter element options that offer superior protection and longevity for the vacuum system.



  • This product price is available on request only

    Request a Quote
Need help? Call us:  1 503 639 0808

Product details

  • Features

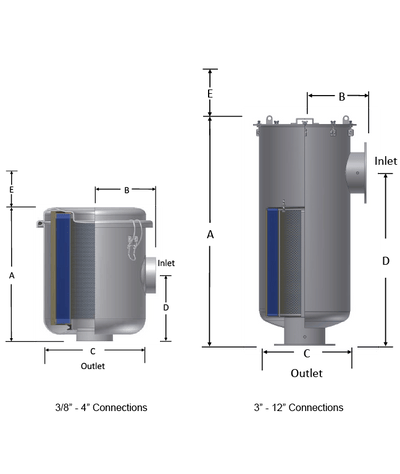

    3/8" - 4" Connections:

    • Seamless drawn housings
    • O‐ring seal
    • Corrosive resistant gray powder coat carbon steel
    • Stainless steel torsion clips

    3" - 12" Connections:

    • Heavy duty T bolts for easy maintenance
    • Corrosive resistant black powder coat carbon steel
    • O-ring stays in place with unique U-channel groove
    • Inlet & outlet 1/4” gauge taps
    Options

    All Sizes:

    • Vacuum gauge
    • Straight-through configurations
    • Various filter media
    • Various finishes and connection styles
    • Stainless steel

    3/8" - 4" Connections: ​

    • Stainless steel (select models)
    • ISO Flange (contact factory for specs, sizes & availability)
    • Mounting housing bands
    • Alternative top‐to‐canister fastening system for low pressure or pulsating systems

    3" - 4" Connections: ​

    • Differential inlet/outlet gauge taps
    • Integrated baffle (3" - 4" connections)
    • Support brackets

    3" - 12" Connections:

    • ISO Flange (contact factory for specs, sizes & availability)
    • Flange faces free of paint
    • Internal surfaces free of paint
    • Lifting lugs
    • Brackets for optional support legs
    • Nameplate bracket
     Applications
    • Vacuum Packaging
    • Vacuum Lifters
    • Blowers-Side Channel
    • Soil Venting/Remediation
    • Factory Automation
    • Leak Detection
    • Woodworking
    • Blowers-Side Channel
    • Ash Handling
    • Cement
    • Compressor-Piston
    • Compressor-Screw
  • Technical Specifications
    • Vacuum Rating: medium vacuum service
    • Temp (continuous): min ‐15°F (‐26°C) max 220°F (104°C)
    • Filter change out differential: 15-20"H2O (37‐50 mbar) over initial Δ P
    • Polyester: 99%+ removal efficiency standard to 5 micron
    • Paper: 99%+ removal efficiency standard to 2 micron



  • CSL Series Inline Right Angle Vacuum Filter Datasheet
    Inlet Vacuum Filters Maintenance Manual



Description
Features

3/8" - 4" Connections:

  • Seamless drawn housings
  • O‐ring seal
  • Corrosive resistant gray powder coat carbon steel
  • Stainless steel torsion clips

3" - 12" Connections:

  • Heavy duty T bolts for easy maintenance
  • Corrosive resistant black powder coat carbon steel
  • O-ring stays in place with unique U-channel groove
  • Inlet & outlet 1/4” gauge taps
Options

All Sizes:

  • Vacuum gauge
  • Straight-through configurations
  • Various filter media
  • Various finishes and connection styles
  • Stainless steel

3/8" - 4" Connections: ​

  • Stainless steel (select models)
  • ISO Flange (contact factory for specs, sizes & availability)
  • Mounting housing bands
  • Alternative top‐to‐canister fastening system for low pressure or pulsating systems

3" - 4" Connections: ​

  • Differential inlet/outlet gauge taps
  • Integrated baffle (3" - 4" connections)
  • Support brackets

3" - 12" Connections:

  • ISO Flange (contact factory for specs, sizes & availability)
  • Flange faces free of paint
  • Internal surfaces free of paint
  • Lifting lugs
  • Brackets for optional support legs
  • Nameplate bracket
 Applications
  • Vacuum Packaging
  • Vacuum Lifters
  • Blowers-Side Channel
  • Soil Venting/Remediation
  • Factory Automation
  • Leak Detection
  • Woodworking
  • Blowers-Side Channel
  • Ash Handling
  • Cement
  • Compressor-Piston
  • Compressor-Screw
Specifications
Technical Specifications
  • Vacuum Rating: medium vacuum service
  • Temp (continuous): min ‐15°F (‐26°C) max 220°F (104°C)
  • Filter change out differential: 15-20"H2O (37‐50 mbar) over initial Δ P
  • Polyester: 99%+ removal efficiency standard to 5 micron
  • Paper: 99%+ removal efficiency standard to 2 micron



Resources
CSL Series Inline Right Angle Vacuum Filter Datasheet
Inlet Vacuum Filters Maintenance Manual
