    Home / Products / Hankison - HRHT High-Temp Compressed Air Dryer 15-100 SCFM

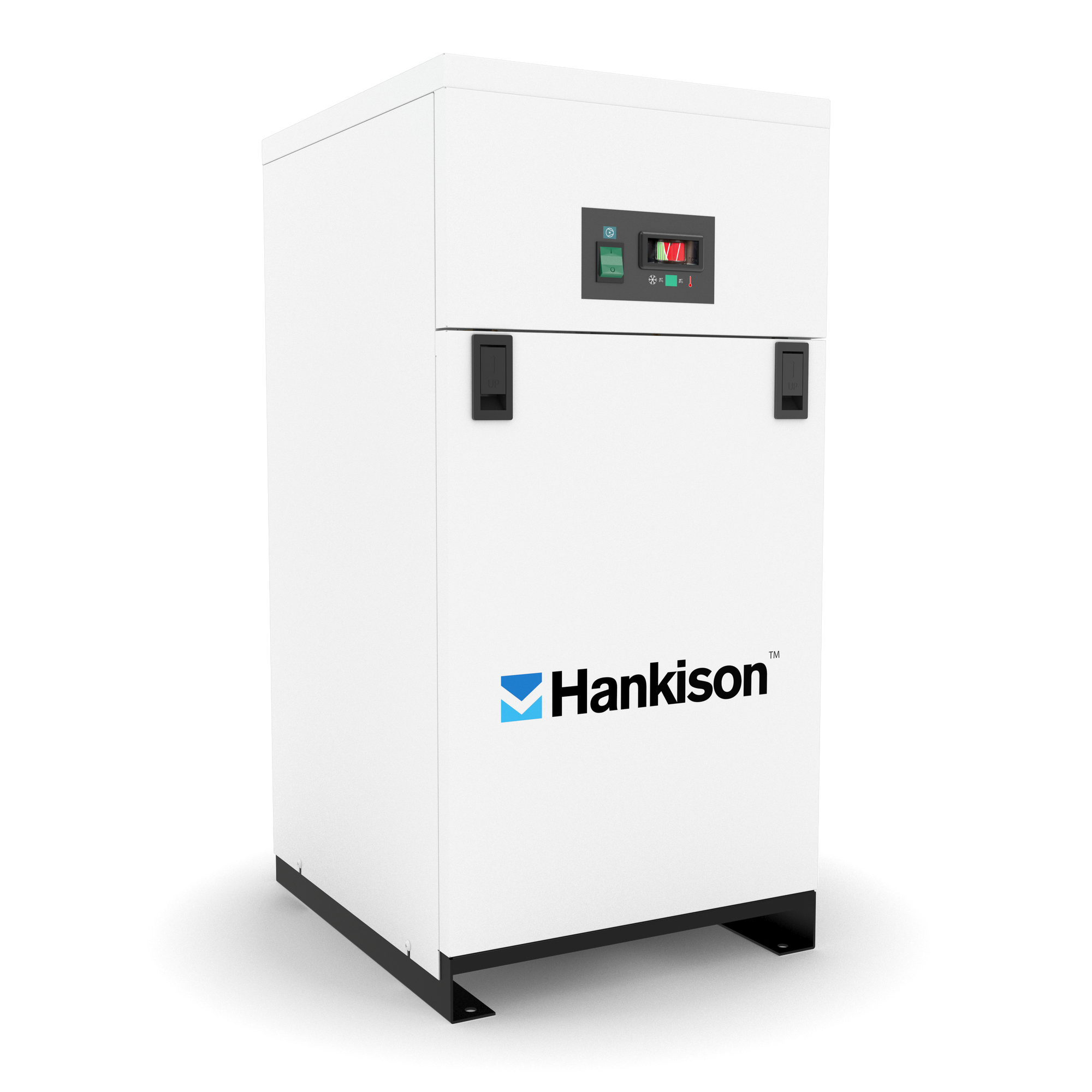

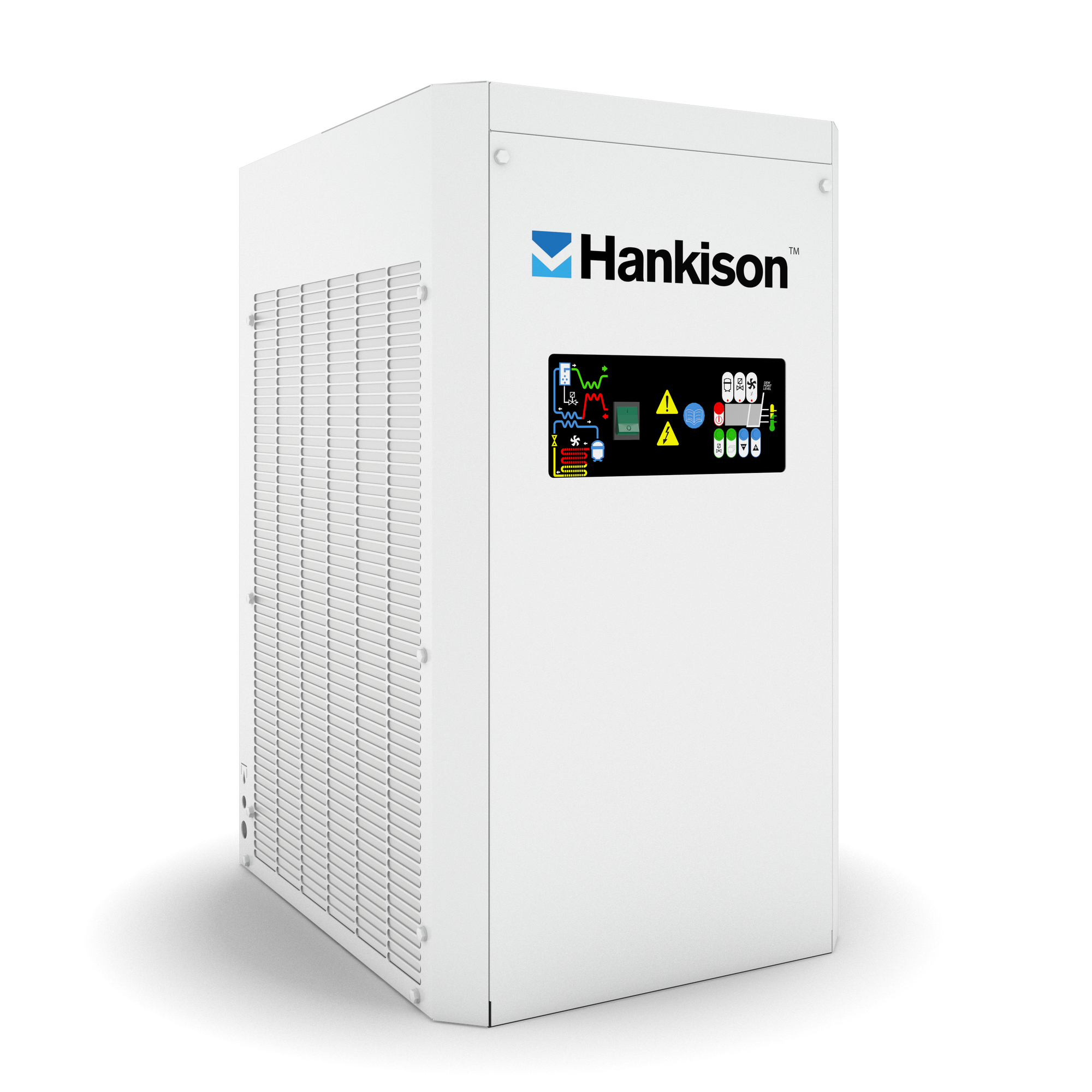

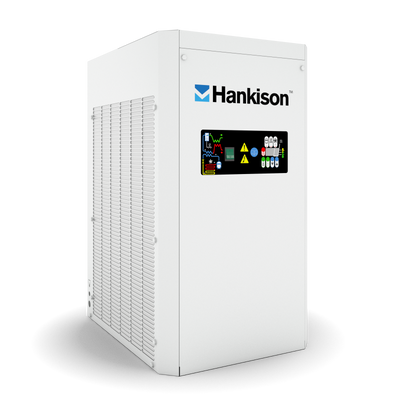

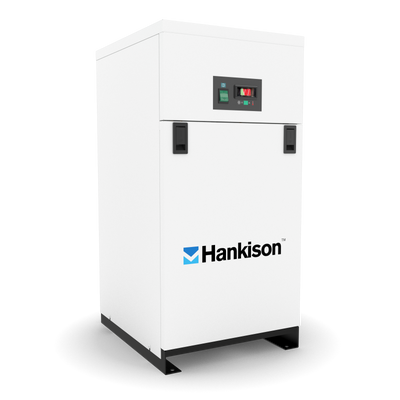

    Hankison - HRHT High-Temp Compressed Air Dryer 15-100 SCFM
    Hankison - HRHT High-Temp Compressed Air Dryer 15-100 SCFM
    Hankison - HRHT High-Temp Compressed Air Dryer 15-100 SCFM
    Hankison - HRHT High-Temp Compressed Air Dryer 15-100 SCFM

    Hankison

    Hankison - HRHT High-Temp Compressed Air Dryer 15-100 SCFM

    High-Inlet Temperature Refrigerated Air Dryers

    High Temperature Air to 180°F, 82°C; The Hankison HITN Series Dryer is Designed and Built to Run Reliably for Years!

    • Flow: 15-100 SCFM
    • Environmentally responsible R513A refrigerant with low GWP
    • High‑Temp Performance rated for 200°F inlet air to match harsh operating conditions

    • This product price is available on request only

      Request a Quote
    Need help? Call us:  1 503 639 0808

    Product details

    Hankison crafts quality refrigerated dryers engineered to match the specific air demands of your compressed air system.

    • Overview

      HITN (High Inlet Temperature) refrigerated compressed air dryers are compact with highly efficient heat exchangers, no internal mesh to foul. Heat exchange efficiency is increased by creating helix flow paths in counterflow arrangement. The two stage separator/filter removes condensed oil ad water over a wide range of flows. A reliable condensate drain - air operated - automatically discharges water and oil from dryer without air loss and no timer to adjust. Our automatic refrigeration temperature control system maintains precise chilled air temperature that never needs to be adjusted for load, ambient or seasonal changes. No freeze ups! A Hermetic refrigeration system requires no maintenance & no adjustments - it operates as reliably as your home refrigerator.

    •         Dimensions (in)
      ModelFlow (SCFM)Flow (NM3/H)Pressure Drop (PSID)VoltagesIn/Out Air Connect SizesPower Consumption (kW)RefrigerantW in.

      D in.

      		H in.Weight (lbs)
      HRHT15A1525.50.8115/1/603/4" MNPT0.48R513A14.616.929.7

      110

      HRHT25A2542.51.8115/1/603/4" MNPT0.51R513A14.616.929.7110
      HRHT35A3559.52.5115/1/603/4" MNPT0.64R513A14.616.929.7117
      HRHT60A60101.94.8115/1/603/4" FNPT0.61R513A16.622.43063.1
      HRHT80A80135.93.8115/1/603/4" FNPT0.77R513A16.63030128
      HRHT100A100169.906.4115/1/601" FNPT1.16R513A16.622.430132

    • Hankison HRHT Series Brochure

      Hankison HRHT Manual

    • Brochure

    Description
    Overview

    HITN (High Inlet Temperature) refrigerated compressed air dryers are compact with highly efficient heat exchangers, no internal mesh to foul. Heat exchange efficiency is increased by creating helix flow paths in counterflow arrangement. The two stage separator/filter removes condensed oil ad water over a wide range of flows. A reliable condensate drain - air operated - automatically discharges water and oil from dryer without air loss and no timer to adjust. Our automatic refrigeration temperature control system maintains precise chilled air temperature that never needs to be adjusted for load, ambient or seasonal changes. No freeze ups! A Hermetic refrigeration system requires no maintenance & no adjustments - it operates as reliably as your home refrigerator.

    Specifications
            Dimensions (in)
    ModelFlow (SCFM)Flow (NM3/H)Pressure Drop (PSID)VoltagesIn/Out Air Connect SizesPower Consumption (kW)RefrigerantW in.

    D in.

    		H in.Weight (lbs)
    HRHT15A1525.50.8115/1/603/4" MNPT0.48R513A14.616.929.7

    110

    HRHT25A2542.51.8115/1/603/4" MNPT0.51R513A14.616.929.7110
    HRHT35A3559.52.5115/1/603/4" MNPT0.64R513A14.616.929.7117
    HRHT60A60101.94.8115/1/603/4" FNPT0.61R513A16.622.43063.1
    HRHT80A80135.93.8115/1/603/4" FNPT0.77R513A16.63030128
    HRHT100A100169.906.4115/1/601" FNPT1.16R513A16.622.430132
    Resources

    Hankison HRHT Series Brochure

    Hankison HRHT Manual

    Brochures

    Brochure
