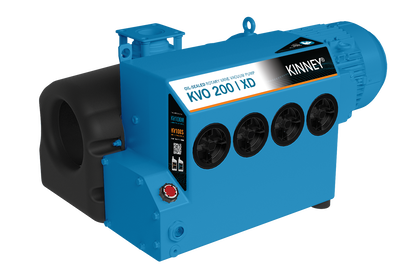

The MD-Kinney KVO XD Series oil-sealed rotary vane vacuum pumps are rugged and durable with heavy-duty construction for extreme-duty applications.
The KVO is ideal where high-volume air is required. The Oil sealed rotary vane vacuum pumps are simple, quiet, and efficient, offering a very attractive cost per CFM ratio when compared to other technologies.
This product price is available on request only
MD-Kinney’s rotary vane vacuum pumps offer a simple compact design that ensures the reliability, durability and ease of use required in the vacuum industry.
The performance of our rotary vane vacuum pumps has been optimized to provide even deeper vacuum levels than before. Most models can achieve ultimate vacuum levels near 0.075 Torr (0.375 Torr with gas ballast in operation).
Unique features of the KVO XD Series Rotary Vane vacuum pumps include:
Applications:
Series | Nominal Displacement (50Hz) (CFM) | Nominal Displacement (60Hz) (CFM) | Ultimate Pressure - w/ Gas Ballast (Torr) | Motor 50Hz HP | Motor 60Hz HP | Rotation Speed (Hz) | Oil Capacity (Gal) | Pump Weight (Lbs.) | Noist Level Max ((db(A)) |
KVO 200 XD | 188 | 141 | 0.375 | 7.4 | 5.6 | 1470 | 1.8 | 370 | 72 |
KVO 300 XD | 177 | 212 | 0.375 | 10 | 10 | 1470 | 1.8 | 375 | 74 |
MD-Kinney Vacuum Pumps & Boosters Line Card
MD-Kinney Vacuum Pumps & Boosters Product Brochure
MD-Kinney KVO Series Oil-Sealed Rotary Vane Vacuum Pumps Brochure
MD-Kinney KVO XD Series Extreme Duty Rotary Vane Vacuum Pumps Spec Sheet
MD-Kinney’s rotary vane vacuum pumps offer a simple compact design that ensures the reliability, durability and ease of use required in the vacuum industry.
The performance of our rotary vane vacuum pumps has been optimized to provide even deeper vacuum levels than before. Most models can achieve ultimate vacuum levels near 0.075 Torr (0.375 Torr with gas ballast in operation).
Unique features of the KVO XD Series Rotary Vane vacuum pumps include:
Applications:
Series | Nominal Displacement (50Hz) (CFM) | Nominal Displacement (60Hz) (CFM) | Ultimate Pressure - w/ Gas Ballast (Torr) | Motor 50Hz HP | Motor 60Hz HP | Rotation Speed (Hz) | Oil Capacity (Gal) | Pump Weight (Lbs.) | Noist Level Max ((db(A)) |
KVO 200 XD | 188 | 141 | 0.375 | 7.4 | 5.6 | 1470 | 1.8 | 370 | 72 |
KVO 300 XD | 177 | 212 | 0.375 | 10 | 10 | 1470 | 1.8 | 375 | 74 |
MD-Kinney Vacuum Pumps & Boosters Line Card
MD-Kinney Vacuum Pumps & Boosters Product Brochure
MD-Kinney KVO Series Oil-Sealed Rotary Vane Vacuum Pumps Brochure
MD-Kinney KVO XD Series Extreme Duty Rotary Vane Vacuum Pumps Spec Sheet
