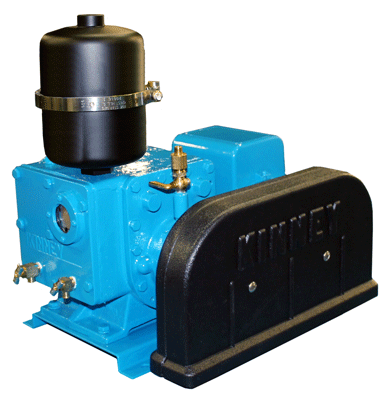

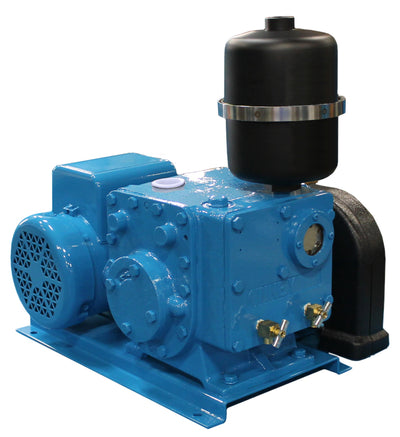

MD-Kinney - KC Series Rotary Piston Vacuum Pump
The MD-Kinney KC two-stage, air-cooled rotary piston pump is recommended for applications that require an operating pressure below 0.1 Torr.
Engineered with standard adjustable gas ballast valves for handling water and other vapor loads quickly, the KC Series rotary piston vacuum pump is an industry leader in quality and reliability.
- Motor: 33-1 HP
- Pumping Speed: 572-638 RPM
- Flow Rate: 5-15 ACFM
-
This product price is available on request only
Product details
MD-Kinney- Rotary Piston Vacuum Pump-KC Series
-
All MD-Kinney rotary piston vacuum pumps offer no metal-to-metal contact between pump piston and cylinder and clearances are filled with oil.
With options between duplex or triplex piston design and air-cooled or water-cooled, you are guaranteed to find a high pumping capacity solution tuned specifically to your operating parameters with the KT, KC, KTC, KD, or KDH line of Kinney rotary piston vacuum pumps.
Features:
- Recommended for applications where operating pressure is below 0.1 Torr (0.13 mbar)
- Achieve lowest possible pressures from mechanical pumps
- Rugged and reliable
- No metal-to-metal contact between pump piston & cylinder
- Clearances are filled with oil
- Unequaled durability, even in dirty applications
Applications:
- Evacuating Refrigeration Systems
- Liquid Gas Storage
- Brake Filling Systems
- Low-Pressure Chemical Vapor Deposition (LPCVD)
- Silicon Crystal Growing
- Leak Detection
-
Model NOMINAL
DISPLACEMENT
(ACFM)MOTOR
(HP)RPM OIL CAPACITY
(Quarts)MAX. GAS
BALLAST FLOW
%GAS BALLAST
PRESSURE
(Torr)ULTIMATE
PRESSURE
(MICRONS)NOISE LEVEL
AT 0.1 TORR
(0.13 mbar)
dB(A)KC-5 5 0.33 638 0.8 15 0.02 0.2 75 KC-8 8 1-Phase:
0.75
3-Phase:
0.51022 0.8 15 0.02 0.2 78 KC-15 15 1 572 3.0 15 0.02 0.2 75 -
MD-Kinney Vacuum Pumps & Boosters Product Brochure
MD-Kinney Rotary Piston Vacuum Pumps Brochure - English
MD-Kinney Rotary Piston Vacuum Pump Brochure- Spanish
- Description
All MD-Kinney rotary piston vacuum pumps offer no metal-to-metal contact between pump piston and cylinder and clearances are filled with oil.
With options between duplex or triplex piston design and air-cooled or water-cooled, you are guaranteed to find a high pumping capacity solution tuned specifically to your operating parameters with the KT, KC, KTC, KD, or KDH line of Kinney rotary piston vacuum pumps.
Features:
- Recommended for applications where operating pressure is below 0.1 Torr (0.13 mbar)
- Achieve lowest possible pressures from mechanical pumps
- Rugged and reliable
- No metal-to-metal contact between pump piston & cylinder
- Clearances are filled with oil
- Unequaled durability, even in dirty applications
Applications:
- Evacuating Refrigeration Systems
- Liquid Gas Storage
- Brake Filling Systems
- Low-Pressure Chemical Vapor Deposition (LPCVD)
- Silicon Crystal Growing
- Leak Detection
- Specifications
Model NOMINAL
DISPLACEMENT
(ACFM)MOTOR
(HP)RPM OIL CAPACITY
(Quarts)MAX. GAS
BALLAST FLOW
%GAS BALLAST
PRESSURE
(Torr)ULTIMATE
PRESSURE
(MICRONS)NOISE LEVEL
AT 0.1 TORR
(0.13 mbar)
dB(A)KC-5 5 0.33 638 0.8 15 0.02 0.2 75 KC-8 8 1-Phase:
0.75
3-Phase:
0.51022 0.8 15 0.02 0.2 78 KC-15 15 1 572 3.0 15 0.02 0.2 75 - Resources
- Brochures
MD-Kinney Vacuum Pumps & Boosters Product Brochure
MD-Kinney Rotary Piston Vacuum Pumps Brochure - English
MD-Kinney Rotary Piston Vacuum Pump Brochure- Spanish
