Solberg

RST Series

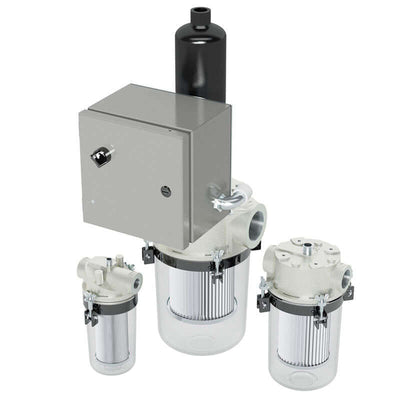

Extreme Particulate Load - Reverse Pulse Vacuum Filters

The reverse pulse RST Series incorporates split second bursts of pressurized air to create a powerful shock wave that cleans the filter element and extends its service life. Quick pulses cause particulate sitting on the elements pleated surface area to release and collect in the drop out area of the filter housing. Pulses can be repeated as required and can occur during a running process because the split second air bursts have minimal effect on the process pressure. Operation can be manually controlled or automated based on user preference. (Optional pulse kit available)

  • This product price is available on request only

    Request a Quote
Need help? Call us:  1 503 639 0808

Product details

  • Features
    • See-through bucket made from shatter resistant polycarbonate material
    • High tensile strength permits dimensional stability
    • Integrated inlet baffle
    • Tap on center of cast head for optional reverse pulse kit air pulse rod:
    • 3/8” NPSC tap on 1” sizes, 3/4” NPSC tap on 2 - 4” sizes
    • Sturdy swing “claw” bolts clamps bucket to head
    Options
    • Carbon steel bucket (RCT)
    • Extended bucket (RSTD)
    • Alternate media
    Applications
    • Ash Handling
    • Cement
    • Paper Processing
    • Pneumatic Conveying Systems
    • Vacuum Pumps & Systems
    • Woodworking
    • Routing Industry
  • RST Series Vacuum Filter Datasheet



Description
Features
  • See-through bucket made from shatter resistant polycarbonate material
  • High tensile strength permits dimensional stability
  • Integrated inlet baffle
  • Tap on center of cast head for optional reverse pulse kit air pulse rod:
  • 3/8” NPSC tap on 1” sizes, 3/4” NPSC tap on 2 - 4” sizes
  • Sturdy swing “claw” bolts clamps bucket to head
Options
  • Carbon steel bucket (RCT)
  • Extended bucket (RSTD)
  • Alternate media
Applications
  • Ash Handling
  • Cement
  • Paper Processing
  • Pneumatic Conveying Systems
  • Vacuum Pumps & Systems
  • Woodworking
  • Routing Industry
Resources
RST Series Vacuum Filter Datasheet
