STS Series

Straight Through Liquid Separator

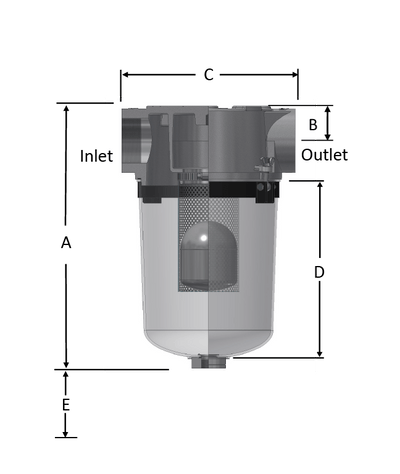

Inlet air with potentially harmful liquid and large particulate enters the housing and is separated by a baffling mechanism and directional air flow changes. The larger particles and liquid drop down and collect at the bottom of the separator. The float capsule within the separator screen rises with the liquid level until max capacity and limits the flow, thereby protecting the pump from damage.

  • This product price is available on request only

    Request a Quote
Need help? Call us:  1 503 639 0808

Product details

  • Features
    • Compact design for space restrictions; min. service area
    • Inlet above element for extended element life & maintenance intervals
    • Corrosive resistant cast aluminum top with machined connections and integrated baffle design
    • Shatter-resistant polycarbonate drop down bucket
    • Stainless steel float capsule for emergency shut-off
    • Stainless steel perforated float tube (SS expanded metal on 1” to 1 1/2”)
    • Clamp style swing bolts on 3” & 4” standard
    • 1” stainless steel drain
    Options
    • Cast head protective coatings
    • Heavy duty carbon steel buckets available (CTS Series)
    • Clamp style swing bolts on 1” to 2 1/2”
    • Spool piece extender
    • Taps for gauges and mounting brackets
    • Pressure drop gauge
    Applications
    • Soil Venting/Remediation
    • Vacuum Pumps & Systems
    • Food Processing
    • Chip Processing
  • Technical Specifications
    • Vacuum Rating: medium vacuum service
    • Temp (continuous): min ‐15°F (‐26°C) max 220°F (104°C)
  • STS Series Liquid Separator Datasheet



Description
Features
  • Compact design for space restrictions; min. service area
  • Inlet above element for extended element life & maintenance intervals
  • Corrosive resistant cast aluminum top with machined connections and integrated baffle design
  • Shatter-resistant polycarbonate drop down bucket
  • Stainless steel float capsule for emergency shut-off
  • Stainless steel perforated float tube (SS expanded metal on 1” to 1 1/2”)
  • Clamp style swing bolts on 3” & 4” standard
  • 1” stainless steel drain
Options
  • Cast head protective coatings
  • Heavy duty carbon steel buckets available (CTS Series)
  • Clamp style swing bolts on 1” to 2 1/2”
  • Spool piece extender
  • Taps for gauges and mounting brackets
  • Pressure drop gauge
Applications
  • Soil Venting/Remediation
  • Vacuum Pumps & Systems
  • Food Processing
  • Chip Processing
Specifications
Technical Specifications
  • Vacuum Rating: medium vacuum service
  • Temp (continuous): min ‐15°F (‐26°C) max 220°F (104°C)
Resources
STS Series Liquid Separator Datasheet
