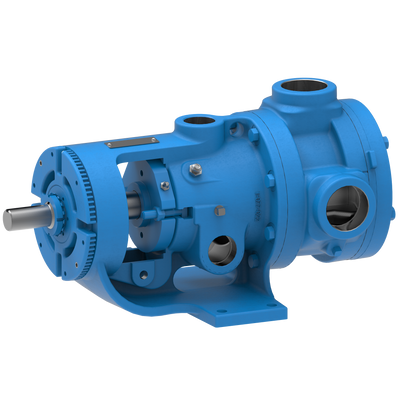

Viking Pump - Hot Wax
The Viking Pump 1224-BXB Series for hot wax keeps your wax in liquid form using a jacketed bracket and head. The inclusion of the O-Pro Barrier combines reliable sealing with minimal maintenance. Features include:
- Hardened shaft to reduce downtime
- Special clearances to accommodate for viscosity fluctuations and minimize shear
- Materials are computable with regular flushing liquid to simplify maintenance
-
This product price is available on request only
Product details
-

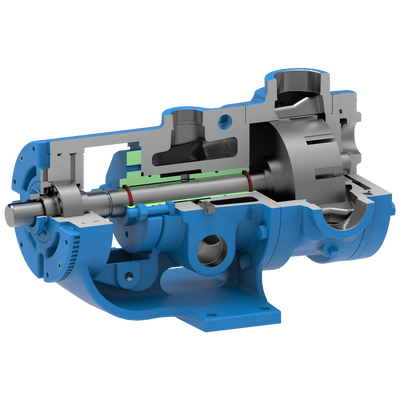

The Viking Pump internal gear pump designed to optimize pumping hot wax includes the O-Pro seal technology, factory installed. The reliability of Viking Pump's internal gear technology combined with the O-rings combines to create a lubrication chamber and seal.
-
Non Jacketed Jacketed Performance Standard Ports O-Pro Barrier Seal O-Pro Barrier Seal Max Speed, RPM GPM m3/h Size, Inches Type Orientation H1124A-BXB H1224A-BXB 1000 8 1.8 1.5 NPT Right Angle HL1124A-BXB HL1224A-BXB 1000 18 4 1.5 NPT Right Angle K1124A-BXB K1224A-BXB 780 80 18 2 NPT Right Angle KK1124A-BXB KK1224A-BXB 780 100 23 2 NPT Right Angle L1124A-BXB L1224A-BXB 640 135 31 2 NPT Right Angle LQ1124A-BXB LQ1224A-BXB 640 135 31 2.5 Flange Right Angle LL1124A-BXB LL1224A-BXB 520 140 32 3 Flange Right Angle LS1124A-BXB LS1224A-BXB 640 200 45 3 Flange Right Angle
- Description
The Viking Pump internal gear pump designed to optimize pumping hot wax includes the O-Pro seal technology, factory installed. The reliability of Viking Pump's internal gear technology combined with the O-rings combines to create a lubrication chamber and seal.
- Specifications
Non Jacketed Jacketed Performance Standard Ports O-Pro Barrier Seal O-Pro Barrier Seal Max Speed, RPM GPM m3/h Size, Inches Type Orientation H1124A-BXB H1224A-BXB 1000 8 1.8 1.5 NPT Right Angle HL1124A-BXB HL1224A-BXB 1000 18 4 1.5 NPT Right Angle K1124A-BXB K1224A-BXB 780 80 18 2 NPT Right Angle KK1124A-BXB KK1224A-BXB 780 100 23 2 NPT Right Angle L1124A-BXB L1224A-BXB 640 135 31 2 NPT Right Angle LQ1124A-BXB LQ1224A-BXB 640 135 31 2.5 Flange Right Angle LL1124A-BXB LL1224A-BXB 520 140 32 3 Flange Right Angle LS1124A-BXB LS1224A-BXB 640 200 45 3 Flange Right Angle - Brochures
- Videos
