Viking Pump - O-Pro Pump Seals

Product details

O-Pro™ Seals utilize a series of O-rings to create a robust seal and lubrication chamber, all in one. O-Pro™ Barrier seal functions as both a seal and bracket bushing; while the O-Pro™ Guard seal is a simple retrofit option.

• Description
• Specifications
• Resources
• Brochures
• Videos

• O-PRO™ BARRIER SEAL
  HOW IT WORKS:

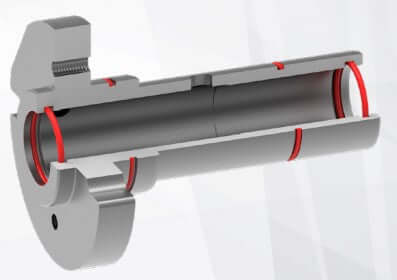

  O-Pro™ Barrier seal replaces packing or mechanical
  seal by occupying the internal bracket cavity with a
  machined seal gland, utilizing O-rings to seal externally
  on the bracket and internally on the shaft. A combination
  of O-rings and lubricating fluid provide a robust seal
  preventing process fluid from leaking out of the pump.
  O-Pro™ Barrier design also contains lubrication
  between the shaft and bushing reducing wear.

  O-PRO™ GUARD SEAL
  HOW IT WORKS:

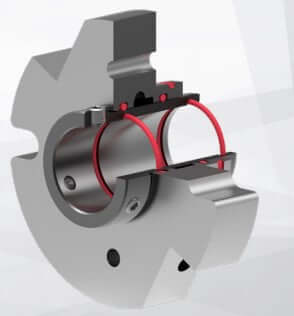

  O-Pro™ Guard seal replaces packing or
  mechanical seal by sealing between the bracket,
  sleeve & shaft surfaces with a series of O-rings.
  The series of O-rings and lubrication provide a
  robust seal for many applications. The stainless
  steel construction utilizes a sleeve that is secured
  to the shaft to address any shaft wear concerns
  to ensure superior performance.

  TYPICAL APPLICATIONS
  Inks, paints, molasses, edible oils, corn syrup,
  honey, lube oil, grease, asphalt, wax, resins,
  starch, fats, isocyanates, adhesives and
  many more!

  RETROFITABILITY
  The following existing Viking pump series may
  be retrofitted to utilize the O-Pro™ seals:

  • 124A Series™
  • 4124A Series™
  • 224A Series™
  • 4224A Series™
  • 324A Series™
  • 4324A Series™

  • 127A Series™
  • 4127A Series™
  • 227A Series™
  • 4227A Series™
  • 327A Series™
  • 4327A Series™


  Kits are available with all parts needed for
  conversion. If shafts are worn, new rotor/shafts
  may be required for conversion to ensure
  sealing. Q and QS size brackets may require
  modification or replacement, if using the O-Pro™
  Barrier, which is not included in the kits



• KIT PART NUMBERS

  Seal Type	H-HL	K-KK	L-LL	LS	Q-QS	M	N	R-RS
  O-Pro™ Barrier	3-464-SEAL-K450	3-464-SEAL-K451	3-464-SEAL- (K452: 1 7/16”)	3-464-SEAL-K453	3-464-SEAL-K454	N/A	3-464-SEAL-K471	3-464-SEAL-K472
  O-Pro™ Guard	3-464-SEAL-K482	3-464-SEAL-K483	3-464-SEAL-K484	3-464-SEAL-K486	3-464-SEAL-K486	3-464-SEAL-K487	3-464-SEAL-K488	3-464-SEAL-K489

  MAXIMUM RPM

  Seal Type	H	HL	K	KK	L	LQ	LL	LS	Q	QS	N	R	RS
  O-Pro™ Barrier	1000	1000	780	780	640	640	520	640	470	470	330	260	260
  O-Pro™ Guard	760	760	520	520	N/A	520	520	520	350	350	280	225	225
