Viking Pump - Starch Adhesives

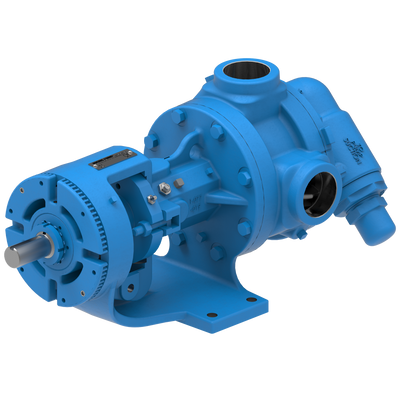

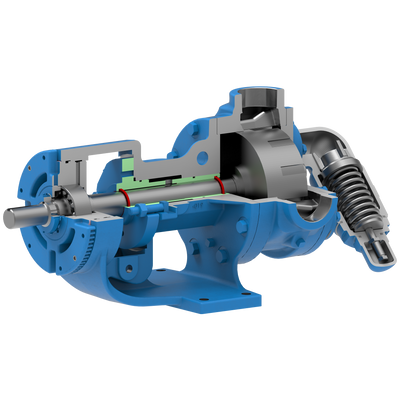

The Viking Pump 1124A-BXB Series ® is ideal for boxboard applications including starch and starch adhesives. The internal gear pump is equipped with the O-Pro® barrier seal which prevents leakage, reduces downtime, and simplifies maintenance. Additional features include:
- Hardened shaft seal
- Clearances to accommodate viscosity fluctuations and minimize shear
- Construction is compatible with regular flushing liquids
-
This product price is available on request only
Product details
-
The Viking 1124A-BXB Series are ideal for starch mixing and delivery systems. They come with standard hardened features and materials to combat the challenges of pumping starch. The inclusion of the O-Pro Barrier seal provides a leak free design which results in a smooth start-up and cleaner work environments.
-
Non Jacketed Jacketed Performance Standard Ports O-Pro Barrier Seal O-Pro Barrier Seal Max Speed, RPM GPM m3/h Size, Inches Type Orientation H1124A-BXB H1224A-BXB 1000 8 1.8 1.5 NPT Right Angle HL1124A-BXB HL1224A-BXB 1000 18 4 1.5 NPT Right Angle K1124A-BXB K1224A-BXB 780 80 18 2 NPT Right Angle KK1124A-BXB KK1224A-BXB 780 100 23 2 NPT Right Angle L1124A-BXB L1224A-BXB 640 135 31 2 NPT Right Angle LQ1124A-BXB LQ1224A-BXB 640 135 31 2.5 Flange Right Angle LL1124A-BXB LL1224A-BXB 520 140 32 3 Flange Right Angle LS1124A-BXB LS1224A-BXB 640 200 45 3 Flange Right Angle -
Viking Pump 1124A-BXB Series Brochure
- Description
The Viking 1124A-BXB Series are ideal for starch mixing and delivery systems. They come with standard hardened features and materials to combat the challenges of pumping starch. The inclusion of the O-Pro Barrier seal provides a leak free design which results in a smooth start-up and cleaner work environments.
- Specifications
Non Jacketed Jacketed Performance Standard Ports O-Pro Barrier Seal O-Pro Barrier Seal Max Speed, RPM GPM m3/h Size, Inches Type Orientation H1124A-BXB H1224A-BXB 1000 8 1.8 1.5 NPT Right Angle HL1124A-BXB HL1224A-BXB 1000 18 4 1.5 NPT Right Angle K1124A-BXB K1224A-BXB 780 80 18 2 NPT Right Angle KK1124A-BXB KK1224A-BXB 780 100 23 2 NPT Right Angle L1124A-BXB L1224A-BXB 640 135 31 2 NPT Right Angle LQ1124A-BXB LQ1224A-BXB 640 135 31 2.5 Flange Right Angle LL1124A-BXB LL1224A-BXB 520 140 32 3 Flange Right Angle LS1124A-BXB LS1224A-BXB 640 200 45 3 Flange Right Angle - Brochures
Viking Pump 1124A-BXB Series Brochure
- Videos
